Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment

Name: Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment
Brand: Shanghai Ecopro Environmental Engineering Co., Ltd.
Price: 13608 USD
Availability: InStock

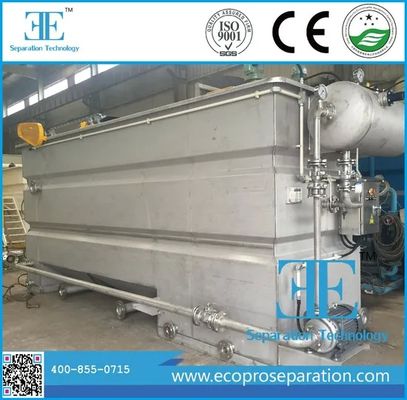

Hình ảnh lớn : Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment

Thông tin chi tiết sản phẩm:

Thanh toán:

Số lượng đặt hàng tối thiểu:	1
Giá bán:	13608

Tiếp xúc

Chi tiết sản phẩm

Mô hình không.:	DAF-010	Dung tích:	5m3/giờ
Máy nén khí:	0,55kW	Công suất bơm hòa tan:	3kw
Skimmer điện:	0,1kw	Máy khuấy đông tụ:	0,55kW
Máy khuấy keo tụ:	0,55kW	Công suất máy khuấy pH:	0,55kW
Kích thước:	360017001850mm	Năng lực sản xuất:	100/tuần
Hiệu suất không khí hòa tan:	95%	Độ ẩm cặn:	ít hơn 98%
Phạm vi pH ưa thích:	6 ~ 9	Nội dung SS:	ppm hoặc mg/L
Hàm lượng dầu mỡ:	ppm hoặc mg/L
Làm nổi bật:	5m3/H Capacity DAF System , 0.55kw Air Compressor Wastewater Treatment Machine , 3kw Dissolved Pump Power Dissolved Air Flotation

Ecopro DAF System Wastewater Dissolved Air Flotation Machine

DAF System for Wastewater Treatment

Dissolved Air Flotation (DAF) is a water treatment process that clarifies wastewaters by removing suspended matter such as oil or solids. The process involves dissolving air in water under pressure and releasing it at atmospheric pressure in a flotation tank, creating microbubbles that adhere to suspended particles and float them to the surface for removal.

Working Process

Wastewater enters coagulation and flocculation reaction tanks where chemicals (PAC and PAM) form flocs
Water and dissolved air enter the DAF tank reaction zone
Microbubbles adhere to flocs, forming particles less dense than water
Floating scum is scraped to the slag tank
Clean water is collected and either discharged or recirculated

System Advantages

High efficiency dissolved air system (≥95% efficiency)
Automatic liquid level control with scum moisture content <98%
Non-clogging design for easy maintenance
Stable treatment efficiency with automatic control
Compact footprint with high effluent quality

Specifications

Model Selection Criteria

Wastewater type (dairy, car wash, slaughterhouse, food processing, etc.)
Suspended solids content (ppm or mg/L)
Oil & grease content (ppm or mg/L)
pH level (6-9 preferred)
BOD and COD levels (ppm or mg/L)

Applications

Municipal sewage, slaughterhouses, metallurgical industry wastewater, spraying sewage, printing & dyeing sewage, metal-processing sewage, mining stone wastewater, electronic sewage.

Reference Project

Company Profile

Shanghai Ecopro Environmental Engineering Co., Ltd. specializes in water and wastewater treatment equipment and separation services. We provide comprehensive environmental solutions including static screens, rotary drum screens, lamella clarifiers, dissolved air flotation systems, electrochemistry systems, sludge treatment equipment, and various pumps.
